| Place of Origin: | Wuxi,China |
| Hàng hiệu: | Werna |
| Chứng nhận: | CE,ISO9001,SASO |
| Model Number: | WR544C |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Giá bán: | USD4024 |
| Packaging Details: | Plywood Cases |
| Delivery Time: | Within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000units/month |
| Wire: | 100% copper wire | Warranty: | 2 years |
|---|---|---|---|
| Life time: | 20 years | THF: | <2 % |
| TIF: | <50 | Protection: | IP22/23 |
| Điểm nổi bật: | 3 phase portable generator,three phase alternator |
||

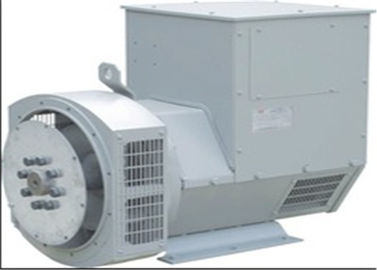

Land Diesel Generator Three Phase AC Generator 400kw / 500kva MX321 , MX341
Name | ALTERNATOR | Brand Name | WERNA |
Color | According to the international standard color card | Feature | AC brushless synchronous excitation alternator |
Power | 240KW | Certificate | CE,ISO9001,SASO |
Specication:
manufacture | Wuxi City ,Jiangsu Prov ,China making alternators |
Output type | AC Three Phase Brushless generator |
Terminal | 12 / 6 Wire |
Rated Voltage | 208V~480V |
Frequency | 50Hz/60hZ |
Speed | 1500/1800RPM |
Mounting Dimension | Stamford Type |
Winding pitch | 2/3 pitch |
Excitation | Brushless, self-excited, synchro |
Insulation Class | H |
Description:
Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
IP23 is for optional but the rated power will decrease 5%.
Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.
Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
Our Alternators
Our Workshop
Our Packages
Every alternator Has its our number
