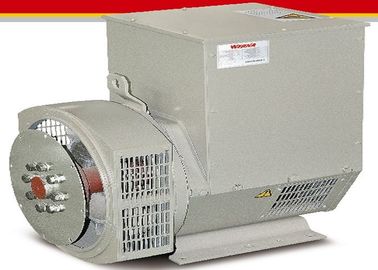

70kw / 70kwa Brushless AC Generator 60hz Frequency For All Generator Set

70kw / 70kwa Brushless AC Generator 60hz Frequency For All Generator Set

  • 70kw / 70kwa Brushless AC Generator 60hz Frequency For All Generator Set
70kw / 70kwa Brushless AC Generator 60hz Frequency For All Generator Set
Thông tin chi tiết sản phẩm:
Place of Origin: Wuxi,China
Hàng hiệu: Werna
Chứng nhận: CE,ISO9001,SASO
Model Number: WR224G
Thanh toán:
Minimum Order Quantity: 5pcs
Giá bán: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Tiếp xúc
Chi tiết sản phẩm
Điểm nổi bật:

self-excited ac generator

,

brushless ac alternator


70kw / 70kwa Brushless AC Generator 60hz Frequency For All Generator Set





Quick Detail:

Name :Alternator            Brand Name:WERNA
Color:According to the international standard color card
Feature:AC brushless synchronous excitation alternator
Certificate :CE,ISO9001,SASO


Specifications:

Model

WR224G

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

60HZ

Speed

1800RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H


Description:
Insulation Class H
All regulatory components are made up with special materials and are immersed in lacquer by peculiar tech.
Vanish and colophony materials are develop to strengthen the processing and machinery intensity of
windings and revolving parts for protecting the alternator work under corrosive environment.
Winding and electric features:
2/3 pith winding design can effectively eliminate the third harmonic wave(3th.9th,15th) of the voltage ,
which is the best design of UPS for nonlinear load .Connected with the network in parallel, the structure
can restrain excessive currents in the midline
A continuous damp windings abates surges. The poles and gears of the windings are carefully chosen,
this and the 2/3 pitch help to check the wave distortion and output voltage.
Phone interference
THF(defined by 40thpart of BS4999) <2%.TIF(defined by ASAC50.12)<50
Radio interference
Brushless apparatus and quality AVR ensure little radio interference in transmission.
RFI noise filter is also available.

Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
Production line
70kw / 70kwa Brushless AC Generator 60hz Frequency For All Generator Set 0
