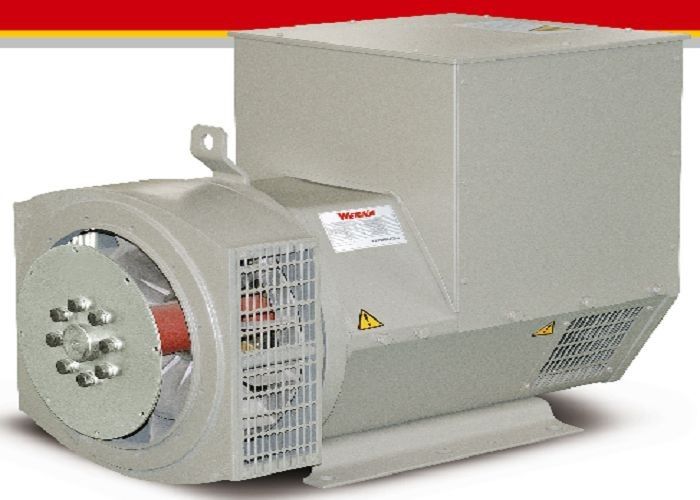

Stamford Type AC Permanent Magnet Synchronous Generator 152KW / 190KVA

Stamford Type AC Permanent Magnet Synchronous Generator 152KW / 190KVA

  • Stamford Type AC Permanent Magnet Synchronous Generator 152KW / 190KVA
Stamford Type AC Permanent Magnet Synchronous Generator 152KW / 190KVA
Thông tin chi tiết sản phẩm:
Place of Origin: Wuxi,China
Hàng hiệu: Werna
Chứng nhận: CE,ISO9001,SASO
Model Number: WR274F
Thanh toán:
Minimum Order Quantity: 5pcs
Giá bán: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Tiếp xúc
Chi tiết sản phẩm
Điểm nổi bật:

permanent magnet alternator generator

,

permanent magnet generator

Stamford Type AC Permanent Magnet Synchronous Generator 152KW / 190KVA



Quick Detail:

Name

ALTERRATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator



Power

         152kw

Certificate

CE,ISO9001,SASO



Specifications:

Model

WR274F

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Three Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

208-480V

Frequency

50HZ

Speed

1800RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H



Description:

  1. The winding varnished wire

The varnished wire our factory use is the H level of 200℃.And the manufacture is the famous public factory whose quality reputation is stable and reliable.

  1. Silicon Steel Sheet

The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.And its advantage is its magnetic flux is large and its iron loss is small.

  1. Insulating paper

The insulating paper we use are supplied by a factory in Suzhou which is invested by a foreign company.The company has strict standard of quality management.They use the material of Dupont and imported glue water.Through the survey and detection,the quality is absolutely the best.

  1. The main frame

The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.

  1. Craft

The craft of our company use the standard of Stamford.All the workers should be trained for a long time.And we carry out the management of 6s.

  1. Component

All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.This is a process that other factories never used.Because it would take much more electric charge,and make the insulated paint consume and loss twice,so it will increase the cost.What's more,all the components should be handled through the process of dampproof,salt and fog proof, anti-corrosion.

  1. Rotor and stator

All the rotors and stators of our company use the rope of best nylon to tie.We promise the security of our products,the phenomenon of ribbon burst will never happen.

  1. Test

All the rotors should be tested by dynamic balance of Germany to go on test of balance. All the products of our factory should be tested by specialized Test Room.All the data such as wave form

voltage, rate,electric resistance and so on ,will show in specialized full-automatic testing machine,and can be printed into testing report of authorized edition.

FAQ:

  1. Q:When was your company established?

       A:in 2005

  2. What is your main products?

       A: Alternator, diesel generator, Motor.

  3. What certificate you get?

       A: We pass ISO9001-2008 and approved by CE,ISO9001

  4. Q: What is your MOQ of this item?

       A: 1-10PCS

  5. Q: What is the lead time?

       A: 25-30 days after receiving your L/C or TT deposit.

  6. Q: Is it all right to make customer's own brand name?

       A: We can be your OEM manufacture with your authorization of brand.

  7. Q: Where is your Loading Port?

       A: Shanghai, China Port.

  8. Q: What are your payment terms?

       A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight
