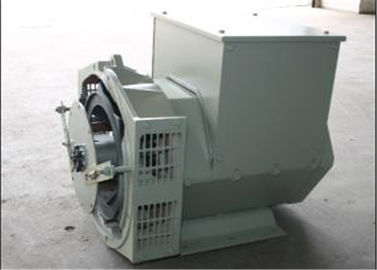

1500RPM 6.5kw - 1720kw Three Phase Alternator 60hz For MTU Generator Set

1500RPM 6.5kw - 1720kw Three Phase Alternator 60hz For MTU Generator Set

  • 1500RPM 6.5kw - 1720kw Three Phase Alternator 60hz For MTU Generator Set
1500RPM 6.5kw - 1720kw Three Phase Alternator 60hz For MTU Generator Set
Thông tin chi tiết sản phẩm:
Place of Origin: Wuxi,China
Hàng hiệu: Werna
Chứng nhận: CE,ISO9001,SASO
Model Number: WR224F
Thanh toán:
Minimum Order Quantity: 5pcs
Giá bán: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Tiếp xúc
Chi tiết sản phẩm
Rated Voltage: 190-454v Excitation: Brushless, self-excited, synchro
Warranty: 2 years life time: more than 20 years
Package: plywood MOQ: 1
Điểm nổi bật:

3 phase portable generator

,

three phase alternator

1500RPM 6.5kw - 1720kw 3 Phase AC Generator 60hz For MTU Generator Set


Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

6.5-1720KW

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

190V~454V

Frequency

50Hz

Speed

1500RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H



Werna Type 3Phase 50Hz 1500rpm Shaft length Copper total weight Core length
380V~415V
KVA KW mm kgs mm
WR224C 42.5 34 668.2 23.45 130
WR224D 50 40 668.2 25.35 160
WR224E 60 48 758.2 28.24 180
WR224F 72.5 58 758.2 32.84 240
WR224G 85 68 673.3 35.94 300

Description:
with long experience in manufacturing alternator / ac generator.
 Alternator Power Ranging 6.5 --1720KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, brushless, Self-excited. Abounds with almost every model in stock.

 Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23
 IP23 is for optional but the rated power will decrease 5%.

 Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

 Winding
All generator stators are wound to 2/3 pitch.

Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
1500RPM 6.5kw - 1720kw Three Phase Alternator 60hz For MTU Generator Set 0
