| Tên thương hiệu: | Werna |
| Số mẫu: | WR274E |
| MOQ: | 5pcs |
| giá bán: | negotiable |
| Chi tiết bao bì: | Plywood |
| Điều khoản thanh toán: | T/T |

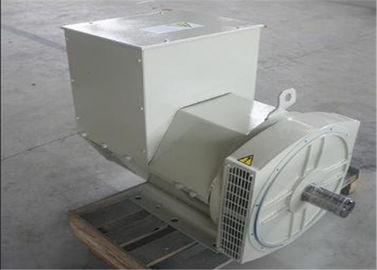

IP23 High Effeciency Three Phase Synchronous AC Generator 134KW / 168kva 60hz
Quick detail:
|
Name |
ALTERNATOR |
Brand Name |
WERNA |
|
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator |
|
Power |
134KW |
Certificate |
CE,ISO9001,SASO |
Specication:
|
manufacture |
Wuxi City ,Jiangsu Prov ,China making alternators |
|
Output type |
AC Three Phase Brushless generator |
|
Terminal |
12 / 6 Wire |
|
Rated Voltage |
208V~480V |
|
Frequency |
60Hz |
|
Speed |
1800RPM |
|
Mounting Dimension |
Stamford Type |
|
Winding pitch |
2/3 pitch |
|
Excitation |
Brushless, self-excited, synchro |
|
Insulation Class |
H |
Parameter:
| Werna Type | 3Phase 50Hz 1500rpm | Shaft length | Copper total weight | Core length | |
| 380V~415V | |||||
| KVA | KW | mm | kgs | mm | |
| WR274C | 100 | 80 | 758 | 41.24 | 165 |
| WR274D | 120 | 91 | 758 | 47.64 | 205 |
| WR274DL | 125 | 100 | 758 | 49.2 | 215 |
| WR274E | 140 | 112 | 873 | 52.21 | 230 |
| WR27EL | 150 | 120 | 873 | 53.1 | 250 |
| WR274F | 160 | 128 | 873 | 54.81 | 285 |
| WR274G | 181 | 145 | 923 | 62.11 | 335 |
| WR274H | 200 | 160 | 963 | 67.91 | 375 |
| WR274J | 230 | 184 | 1006.6 | 74.61 | 450 |
| WR274K | 250 | 200 | 1006.6 | 76.1 | 450 |
Description:
with long experience in manufacturing alternator / ac generator.
Alternator Power Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, brushless, Self-excited. Abounds with almost every model in stock.
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
IP23 is for optional but the rated power will decrease 5%.
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
|
|
