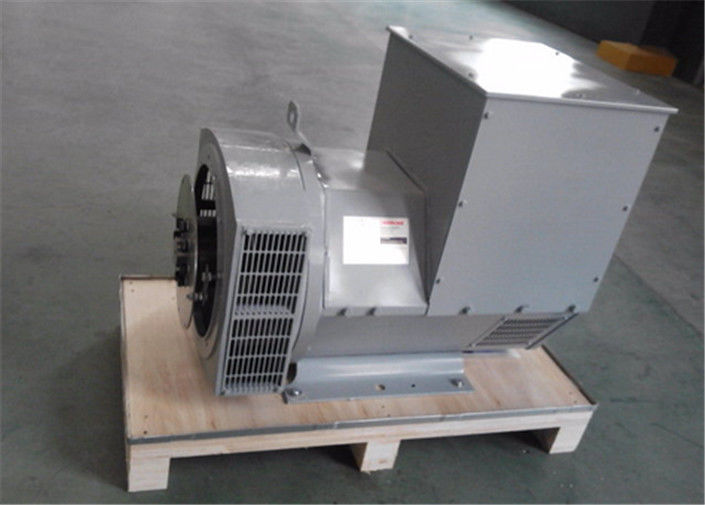

28kw Brushless AC Generator With 12 / 6 Wire Terminal 110 - 240V

28kw Brushless AC Generator With 12 / 6 Wire Terminal 110 - 240V

28kw Brushless AC Generator With 12 / 6 Wire Terminal 110 - 240V

Thông tin chi tiết sản phẩm:

Place of Origin: Wuxi,China
Hàng hiệu: Werna
Chứng nhận: CE,ISO9001,SASO
Model Number: WR182L

Thanh toán:

Minimum Order Quantity: 5pcs
Giá bán: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Liên hệ với bây giờ
Chi tiết sản phẩm
Frequency: 50HZ Speed: 1500Rpm or 1800Rpm
Mounting dimensions: Stamford Type Winding Pitch: 2 / 3 pitch
Insulation Class: H Material: Cold roll stator & 100 % copper



28kw Brushless Synchronous AC Alternator Generator With 12 / 6 Wire Terminal




Quick Detail:

Name

  Alternator

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator



Power

          28kw

Certificate

CE,ISO9001,SASO




Specifications:

Model

WR182L

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

50HZ

Speed

3000RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H



Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP22
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.

FAQ

1. Q: What is the lead time?



       A: 25-30 days after receiving your L/C or TT deposit.

 2. Q: Is it all right to make customer's own brand name?

       A: We can be your OEM manufacture with your authorization of brand.

 3. Q: Where is your Loading Port?

       A: Shanghai, China Port.

 4. Q: What are your payment terms?

       A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.

  5. Q: What is your company's available production capacity?

       A: 3000-5000 pieces against your orders.
