| Place of Origin: | Wuxi,China |
| Hàng hiệu: | Werna |
| Chứng nhận: | CE,ISO9001,SASO |
| Model Number: | WR224C |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Giá bán: | negotiation |
| Packaging Details: | Plywood |
| Delivery Time: | Within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000units/month |
| THF: | <2% | Sự bảo vệ: | IP22 |
|---|---|---|---|
| Lớp cách nhiệt: | h | Điện áp định mức: | 190-454v |
| Loại đầu ra: | Máy phát điện diesel 3 pha & 3 pha AC | nhà chế tạo: | Thành phố Vô Tích, Tỉnh Giang Tô, Trung Quốc làm người thay thế |
| Điểm nổi bật: | máy phát điện xoay chiều không chổi than,máy phát điện đồng bộ không chổi than,máy phát điện không chổi than một pha IP22 |
||

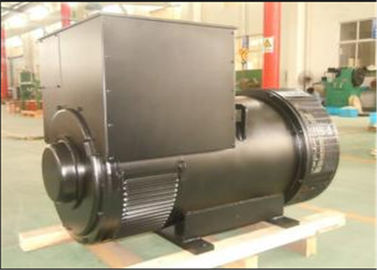

Single Phase 30kva from 110v / 240v Brushless AC Alternator For Generator Set
Quick Detail:
Place of origin:Jiangsu,china Brand name:Werna
Output Type: Ac single phase Certificates:CE,ISO9001
Specifications:
|
Model |
WR224C |
|
manufacturer |
Wuxi City ,Jiangsu Prov ,China making alternators |
|
Output Type |
AC Single Phase diesel generator |
|
Terminal |
12 / 6 Wire |
|
Rated Voltage |
110-240V |
|
Frequency |
50HZ |
|
Speed |
1500RPM |
|
Mounting dimensions |
Stamford Type |
|
Winding Pitch |
2 / 3 pitch |
|
Excitation |
Brushless, self-excited, synchronous |
|
Insulation Class |
H |
Description:
We are professional manufacture of stamford copy of alternator.
Insulation
Insulation Class H
All regulatory components are made up with special materials and are immersed in lacquer by peculiar tech. Vanish and colophony materials are develop to strengthen the processing and machinery intensity of windings and revolving parts for protecting the alternator work under corrosive environment.
Winding and electric features:
2/3 pith winding design can effectively eliminate the third harmonic wave(3th.9th,15th) of the voltage ,which is the best design of UPS for nonlinear load .Connected with the network in parallel, the structure can restrain excessive currents in the midline
A continuous damp windings abates surges. The poles and gears of the windings are carefully chosen, this and the 2/3 pitch help to check the wave distortion and output voltage.
Phone interference
THF(defined by 40thpart of BS4999) <2%.TIF(defined by ASAC50.12)<50
Radio interference
Brushless apparatus and quality AVR ensure little radio interference in transmission. RFI noise filter is also available.
ompetitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
