Nhà Sản phẩmStamford AC Generators

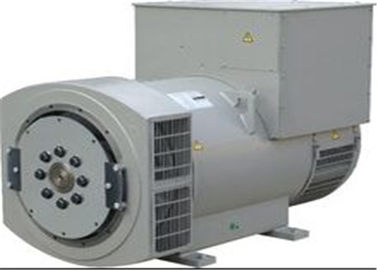

2 / 3 Pitch 12kw 12kva Single Phase Stamford AC Generators Self Excited 1800rpm

2 / 3 Pitch 12kw 12kva Single Phase Stamford AC Generators Self Excited 1800rpm

  • 2 / 3 Pitch 12kw 12kva Single Phase Stamford AC Generators Self Excited 1800rpm
2 / 3 Pitch 12kw 12kva Single Phase Stamford AC Generators Self Excited 1800rpm
Thông tin chi tiết sản phẩm:
Place of Origin: Wuxi,China
Hàng hiệu: Werna
Chứng nhận: CE,ISO9001,SASO
Model Number: WR164C
Thanh toán:
Minimum Order Quantity: 5pcs
Giá bán: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Tiếp xúc
Chi tiết sản phẩm
COLOR: OPTIONAL WIRE: 100% COPPER WIRE
WARRANTY: 2 YEARS LIFE TIME: 20 YEARS
INSULATION: H PROTECTION: IP22/23
Điểm nổi bật:

brushless ac generator

,

brushless alternator generator

2 / 3 Pitch 12kw 12kva Single Phase Stamford AC Generators Self Excited 1800rpm


Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

12KW

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Single Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

110V~240V

Frequency

60Hz

Speed

1800RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H


Description:
1) Protection class IP23, insulation class H.
2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable for indoors marine applications.
3) The brushless alternator is equipped with reliable AVR.   MX321, MX341, AS440, SX440, SX460, etc
4) Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
5) The power factor ranges from 0.8 to 1.
6) Telephone influence factor is less than 50, according to NTMA.
7) Transient voltage dip for rated step load at 0.8 power factor is less than 18%.
8) Overload standard according to NEMA.
9) All generator statore are wound to 2/3 pitch.

 Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP22

Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

Winding
All generator stators are wound to 2/3 pitch



FAQ:

1. Q:When was your company established?

       A:in 2005

2. Q:What is your main products?

       A: Alternator, diesel generator, Motor.

3. Q:What certificate you get?

       A: We pass ISO9001-2008 and approved by CE,ISO9001

4. Q: What is your MOQ of this item?

       A: 1-10PCS

5. Q: What is the lead time?

       A: 25-30 days after receiving your L/C or TT deposit.

6. Q: Is it all right to make customer's own brand name?

       A: We can be your OEM manufacture with your authorization of brand.

7. Q: Where is your Loading Port?

       A: Shanghai, China Port.

8. Q: What are your payment terms?

       A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.

9. Q: What is your company's available production capacity?

       A: 3000-5000 pieces against your orders.

2 / 3 Pitch 12kw 12kva Single Phase Stamford AC Generators Self Excited 1800rpm 0
