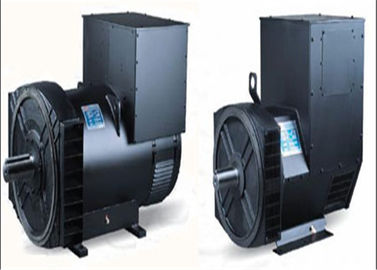

220V Alternator Three Phase AC Generator 200kw / 250kva SX440 , SX460

220V Alternator Three Phase AC Generator 200kw / 250kva SX440 , SX460

220V Alternator Three Phase AC Generator 200kw / 250kva SX440 , SX460

Thông tin chi tiết sản phẩm:

Place of Origin: Wuxi,China
Hàng hiệu: Werna
Chứng nhận: CE,ISO9001,SASO
Model Number: WR444c

Thanh toán:

Minimum Order Quantity: 1 pcs
Giá bán: USD2560
Packaging Details: Plywood Cases
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Liên hệ với bây giờ
Chi tiết sản phẩm
OEM Service: acceptable Material: Cold roll stator & 100 % copper
Insulation class: H Protection: IP22
Warranty: 2 years Life time: 20 years

220V Alternator Three Phase AC Generator 200kw / 250kva SX440 , SX460


Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

200KW

Certificate

CE,ISO9001,SASO




Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

208V~480V

Frequency

50Hz/60hZ

Speed

1500/1800RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H




Description:
Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23
 IP23 is for optional but the rated power will decrease 5%.

 Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

 Winding
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.

Why to choose Werna Alternator/generator?

1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service

Our Alternators
220V Alternator Three Phase AC Generator 200kw / 250kva SX440 , SX460
Our Workshop
220V Alternator Three Phase AC Generator 200kw / 250kva SX440 , SX460
Our Packages
220V Alternator Three Phase AC Generator 200kw / 250kva SX440 , SX460
Every alternator Has its our number
220V Alternator Three Phase AC Generator 200kw / 250kva SX440 , SX460
