| Place of Origin: | Wuxi,China |
| Hàng hiệu: | WERNA |
| Chứng nhận: | CE,ISO9001,SASO |
| Model Number: | WR224E16 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Giá bán: | USD 880 FOB SHANGHAI |
| Packaging Details: | Plywood |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 units/month |
| Wire: | 100% copper wire | Life time: | 20 years |
|---|---|---|---|
| Warranty: | 2 years | THF: | <2% |
| Insulation class: | H | Protection: | IP22/23 |
| Điểm nổi bật: | 1 Phase AC Generator,single phase alternator |
||

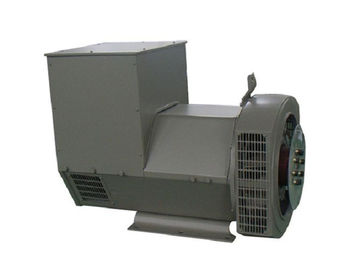

110V - 690V Single Phase AC Generator Brushless Synchronous 45kw / 45KVA
Quick Detail:
|
Name |
ALTERNATOR |
Brand Name |
WERNA |
|
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator |
|
Power |
45kw |
Certificate |
CE,ISO9001,SASO |
Specifications:
|
Model |
WR224E16 |
|
manufacturer |
Wuxi City ,Jiangsu Prov ,China making alternators |
|
Output Type |
AC Single Phase diesel generator |
|
Terminal |
12 / 6 Wire |
|
Rated Voltage |
110-240V |
|
Frequency |
60HZ |
|
Speed |
1800RPM |
|
Mounting dimensions |
Stamford Type |
|
Winding Pitch |
2 / 3 pitch |
|
Excitation |
Brushless, self-excited, synchronous |
|
Insulation Class |
H |
Description:
Copy Stamford brushless alternators we supply:
● Power range: from 8kva to 1250kva
● 100% copper &100% output
● Real H class insulation
● IP22 protection
● Whole piece silicon plate
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP22
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
We have got ISO & CE, and our alternators are widely exported to the world-wide market, like Southeast Asia, Middle East, Africa and South American countries etc. Our products are well-received by our customers.
Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
