Nhà Sản phẩmDouble Bearing Alternator

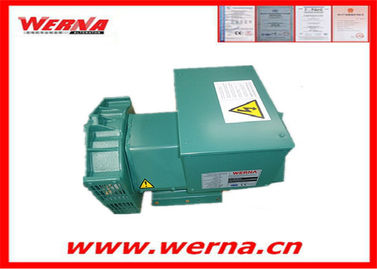

Home Three-Phase Double Bearing Generator 100% Copper 2/3 Pitch

Home Three-Phase Double Bearing Generator 100% Copper 2/3 Pitch

  • Home Three-Phase Double Bearing Generator 100% Copper 2/3 Pitch
  • Home Three-Phase Double Bearing Generator 100% Copper 2/3 Pitch
  • Home Three-Phase Double Bearing Generator 100% Copper 2/3 Pitch
Home Three-Phase Double Bearing Generator 100% Copper 2/3 Pitch
Thông tin chi tiết sản phẩm:
Place of Origin: WUXI ,JIANGSU,CHINA
Hàng hiệu: WERNA
Chứng nhận: ISO CE SASO
Model Number: WR544E14
Thanh toán:
Minimum Order Quantity: 1 pcs
Giá bán: USD 4000 fob shanghai
Packaging Details: plywood
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 1500 pcs / month
Tiếp xúc
Chi tiết sản phẩm
Terminal: 12 / 6 Wire Rated Voltage: 190-454v
Frequency: 50HZ Mounting dimensions: Stamford Type
Winding Pitch: 2 / 3 pitch Excitation: Brushless, self-excited, synchro
Điểm nổi bật:

double bearing generator

,

ac brushless generator

Home Three-Phase Double Bearing Generator 100% Copper 2/3 Pitch







Quick Detail:

Name

Alternator

Brand Name

WERNA

Color

According to the international standard color card

Feature



AC brushless synchronous excitation alternator


Power

      488kw/610KVA

Certificate

CE,ISO9001,SASO


Specifications:

Model

WR544E14

manufacturer

Wuxi City ,Jiangsu Prov ,China

Output Type

AC 3 Phase

Terminal

12 / 6 Wire

Rated Voltage

190-454V

Frequency

50HZ

Speed

1500RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H class


Description:
with Long experience in manufacturing alternator / ac generator,ranging6.5~1760kw
for prime or standby use, more than 80 different models, with 50Hz or 60Hz frequency, Single bearing or
Double bearing, brushless, Self-excited. Abounds with almost every model in stock.
1) Protection class IP23, insulation class H.
2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable
for indoors marine applications.
3) The brushless alternator is equipped with reliable AVR.   MX321, MX341, AS440, SX440, SX460, etc
4)  Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
5) The power factor ranges from 0.8 to 1.
6) Telephone influence factor is less than 50, according to NTMA.

Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001,SASO
8. Good after-sale service

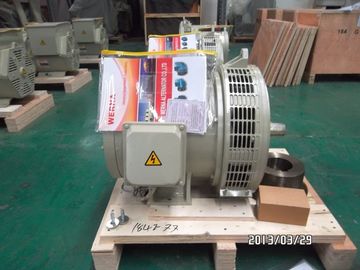

Production line




Home Three-Phase Double Bearing Generator 100% Copper 2/3 Pitch 0

Home Three-Phase Double Bearing Generator 100% Copper 2/3 Pitch 1



Our service

Werna factory provides high quality generator sets and alternator,each one is strictly test before Export . After service and spart parts are availabale from our factory.





Company infomation

Werna company is the professional alternators manufacturer, together with the most advanced design, production in the world. The Werna generators are self-excited, self-regulating, brushless synchronous machines. The insulation system of the windings confirms to the requirements of temperature class H, ensure that the Werna generators set a international standard for excellent performances and reliability. Werna range covers 5kVA upto 1386kVA at 1500/1800rpm, 3000/3600rpm, with 50/60Hz, 110V-690V for you selected.

 Werna series conform to the requirements of IEC34, VDE0530, BS5000 part 3. Our quality standard:
 To consistently deliver products and services that meet or exceed our customer's expectations.
 To continually improve everything we do, through the active involvement of associate.

 We take our great efforts to create brushless, synchronous alternators of performance price rate excellent than world's product. Our success owes to advance technology, High quality, reasonable prices and Satisfied service.

 We hope that We can establish the friendly business relationship with your company, become cooperation partner, and pleasure to work together with you. Developing together with your company. We will offer all information and samples to you for testing in accordance with your Detailed requirements to gain your approval. Warmly Welcome to our company to interview At your convenience. We believe that our alternators do not make disappointed and you will get The satisfactory result. If you have any question, Kindly please have no any hesitation to contact Us immediately.
