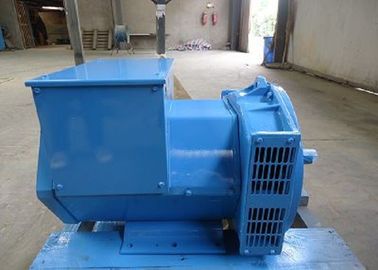

Stamford Three Phase AC Generator 27.5kw / 34.4kva 1800rpm For Perkins Generator Set

Stamford Three Phase AC Generator 27.5kw / 34.4kva 1800rpm For Perkins Generator Set

Stamford Three Phase AC Generator 27.5kw / 34.4kva 1800rpm For Perkins Generator Set

Thông tin chi tiết sản phẩm:

Place of Origin: Wuxi,China
Hàng hiệu: Werna
Chứng nhận: CE,ISO9001,SASO
Model Number: WR184F

Thanh toán:

Minimum Order Quantity: 5pcs
Giá bán: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Liên hệ với bây giờ
Chi tiết sản phẩm

Stamford Three Phase AC Generator 27.5kw / 34.4kva 1800rpm For Perkins Generator Set


Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

8.2-2160KW

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

208V~480V

Frequency

60Hz

Speed

1800RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchrous

Insulation Class

H



Werna Type

3Phase 60Hz 1800rpm

Shaft length

Copper total weight

Core length



208V~480V




KVA

KW

mm

kgs

mm

WR164A

10.2

8.2

373.16

9.98

65

WR164B

13.8

11

373.16

11.18

80

WR164C

16.9

13.5

400.16

11.6

100

WR164D

20.2

16

400.16

11.88

115

WR184E

28.8

23

440.16

14.72

150

WR184F

34.4

27.5

530.16

16.2

190

WR184G

37.5

30

530.16

17.8

230

WR184H

46.9

37.5

673.3

19.21

255

WR184J

50

40

673.3

20.48

285

Description:
Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23
 IP23 is for optional but the rated power will decrease 5%.

 Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

 Winding
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Winding
All generator stators are wound to 2/3 pitch.
Alternator brushless for aksa generator Ranging8.2 --2160KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.

Advantages of our products
1, Advanced AVR :SX460 &SX440
2, H class insulation ensure the generator running in dreadful conditions
3, The 2/3 pitch design avoids excessive neutral currents
4, You can reconnect 12 ends of the terminals to meet other voltage
5, Single bearing and double bearing ,single phase and three phases
6, Standard IP23
Stamford Three Phase AC Generator 27.5kw / 34.4kva 1800rpm For Perkins Generator Set
