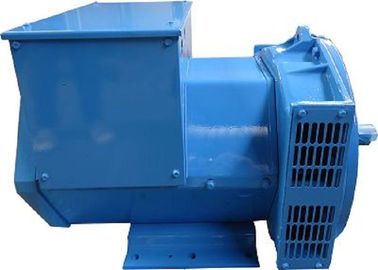

Blue High Speed Three Phase AC Generator / Alternator 30kw / 37.5kva 60hz

Blue High Speed Three Phase AC Generator / Alternator 30kw / 37.5kva 60hz

  • Blue High Speed Three Phase AC Generator / Alternator 30kw / 37.5kva 60hz
Blue High Speed Three Phase AC Generator / Alternator 30kw / 37.5kva 60hz
Thông tin chi tiết sản phẩm:
Place of Origin: Wuxi,China
Hàng hiệu: Werna
Chứng nhận: CE,ISO9001,SASO
Model Number: WR184G
Thanh toán:
Minimum Order Quantity: 5pcs
Giá bán: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Tiếp xúc
Chi tiết sản phẩm
Điểm nổi bật:

3 phase ac generator

,

3 phase portable generator

Blue High Speed Three Phase AC Generator / Alternator 30kw / 37.5kva 60hz


Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

30KW

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

208V~480V

Frequency

60Hz

Speed

1800RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H

 Technical Datas

Werna Type 3Phase 60Hz 1800rpm Shaft length Copper total weight Core length
  208V~480V
  KVA KW mm kgs mm
WR164A 10.2 8.2 373.16 9.98 65
WR164B 13.8 11 373.16 11.18 80
WR164C 16.9 13.5 400.16 11.6 100
WR164D 20.2 16 400.16 11.88 115
WR184E 28.8 23 440.16 14.72 150
WR184F 34.4 27.5 530.16 16.2 190
WR184G 37.5 30 530.16 17.8 230
WR184H 46.9 37.5 673.3 19.21 255
WR184J 50 40 673.3 20.48 285

Description:
with long experience in manufacturing alternator / ac generator.
 Alternator Power Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, brushless, Self-excited. Abounds with almost every model in stock.

 Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23
 IP23 is for optional but the rated power will decrease 5%.

 Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

 Winding
All generator stators are wound to 2/3 pitch.

Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
Blue High Speed Three Phase AC Generator / Alternator 30kw / 37.5kva 60hz 0Blue High Speed Three Phase AC Generator / Alternator 30kw / 37.5kva 60hz 1
