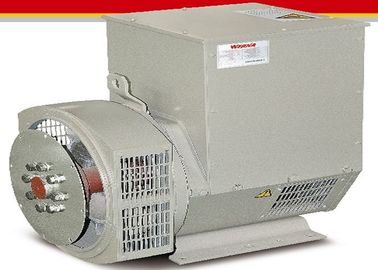

110V - 690V Brushless Synchronous Single Phase AC Generator 45kw / 45KVA

110V - 690V Brushless Synchronous Single Phase AC Generator 45kw / 45KVA

110V - 690V Brushless Synchronous Single Phase AC Generator 45kw / 45KVA

Thông tin chi tiết sản phẩm:

Place of Origin: Wuxi,China
Hàng hiệu: Werna
Chứng nhận: CE,ISO9001,SASO
Model Number: WR224E

Thanh toán:

Minimum Order Quantity: 5pcs
Giá bán: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Liên hệ với bây giờ
Chi tiết sản phẩm

110V - 690V Brushless Synchronous Single Phase AC Generator 45kw / 45KVA


Quick Detail:


Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator



Power

          45kw

Certificate

CE,ISO9001,SASO


Specifications:

Model

WR224E

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

60HZ

Speed

1800RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H


Description:
Copy Stamford brushless alternators we supply:
● Power range: from 8kva to 1250kva
● 100% copper &100% output
● Real H class insulation
● IP22 protection
● Whole piece silicon plate


Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP22

Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

 Winding
All generator stators are wound to 2/3 pitch.
We have got ISO & CE, and our alternators are widely exported to the world-wide market, like Southeast Asia, Middle East, Africa and South American countries etc. Our products are well-received by our customers.

Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service

110V - 690V Brushless Synchronous Single Phase AC Generator 45kw / 45KVA
